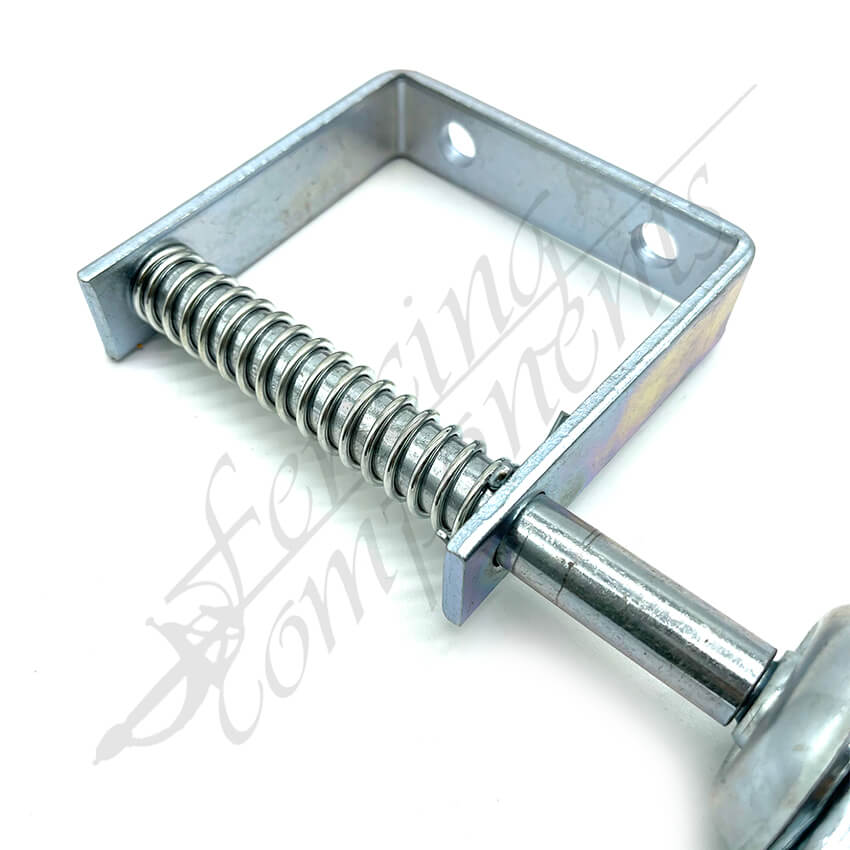

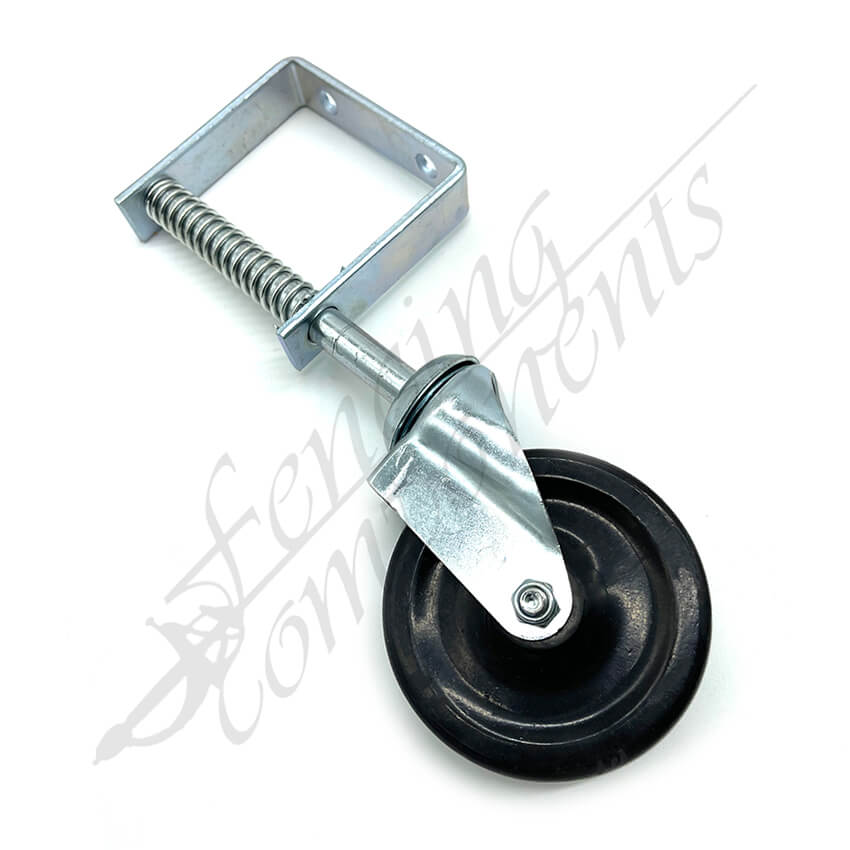

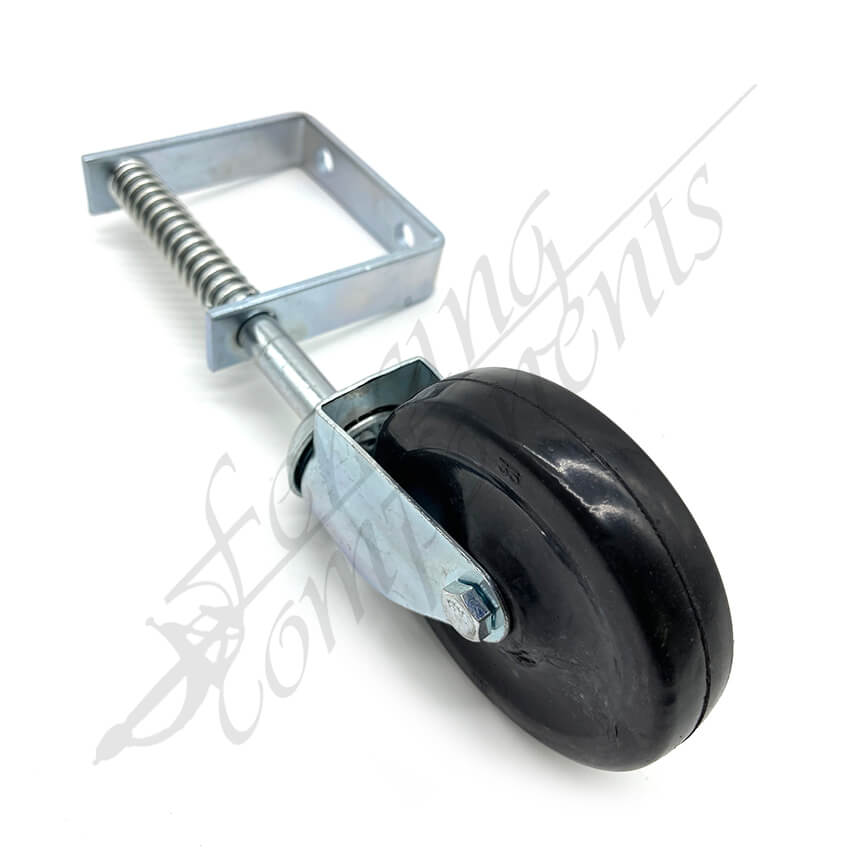

100mm Nylon Spring Wheel with Steel Bracket.
- 28cm high x 10x10cm bracket.
- Used to take weight off large swing gates.
- Weight capacity between 50~60kg
- (Screws not provided)

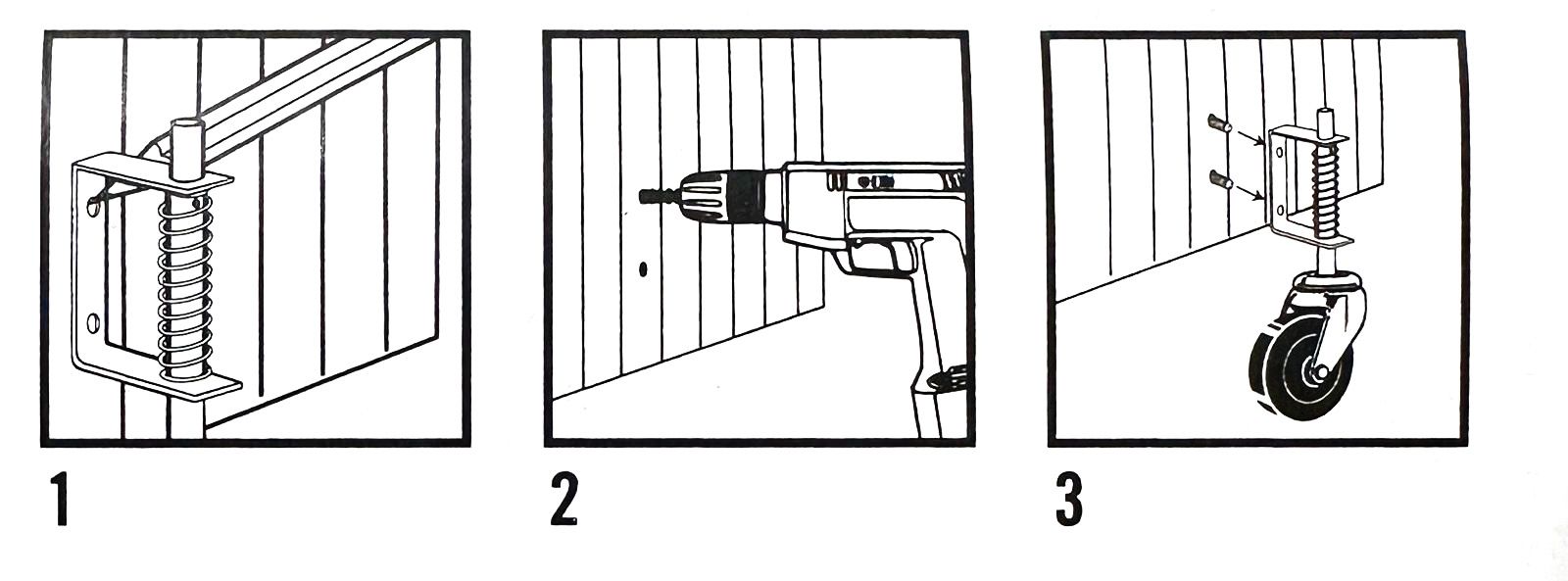

Installation Guide :
1. Position Spring Wheel.
2. Drill (2) 3/8 inch mounting holes in gate door.
3. Obtain and insert 5/16 inch bolts through mounting holes and Spring Wheel. Secure with washers and lock nuts.
